| -Current - Collector Pulsed (Icm) |
200A |
| -Power - Max |
277W |
| -IGBT Type |
Trench Field Stop |
| -Td (on/off) @ 25°C |
39ns/143ns |
| -Part Status |
Active |
| -Manufacturer |
Rohm Semiconductor |
| -Voltage - Collector Emitter Breakdown (Max) |
650V |
| -Mounting Type |
Through Hole |
| -Input Type |
Standard |
| -Operating Temperature |
-40°C ~ 175°C (TJ) |
| -Lead Free Status / RoHS Status |
1 |
| -RoHS |
Lead free / RoHS Compliant |

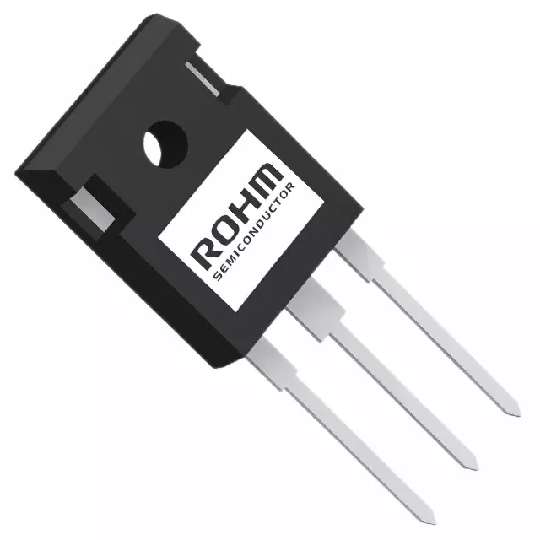

| -Package / Case |
TO-247-3 |
| -Test Condition |
400V, 50A, 10 Ohm, 15V |
| -Supplier Device Package |
TO-247N |
| -Current - Collector (Ic) (Max) |
85A |
| -Category |
Discrete Semiconductor Products |
| -Gate Charge |
94nC |
| -Family |
Transistors - IGBTs - Single |
| -Vce(on) (Max) @ Vge, Ic |
2.1V @ 15V, 50A |
| -Packaging |
Tube |
| -Categories |
Discrete Semiconductor Products -> Transistors - IGBTs - Single |
| -Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
